MMT-650-500-DD

MMT-650-500-DD – the perfect accessory for your AM application

Load capacity: 500 kg
with torque motors

The MAX Machining Table MMT-650-500-DD rotary swivel table from MABI Robotic is the perfect accessory for your robotics application in the field of additive manufacturing. It comes equipped ex works with powerful, water-cooled direct drives and a high-resolution encoder.

MMT-650-500-DD
Info

This guarantees high performance for efficient machining, combined with high positioning accuracy for high machining precision. The MMT-650-500-DD from MABI Robotic was specially developed for robotics applications in the AM sector.

The MMT-650-500-DD from MABI Robotic is a key component of modern CNC robot systems and sets standards in automated manufacturing. With its compact design and sophisticated drive technology, it offers powerful axis movements, maximum precision, and exceptional dynamics. This makes it an ideal solution for use in flexible manufacturing cells – from additive manufacturing (AM) and demanding machining processes to high-end milling applications. In combination with the MAX series robots from MABI Robotic, it creates a powerful and modular platform that paves the way for next-generation automated production. The interplay of robust mechanics, intelligent control, and innovative drive technology opens up completely new possibilities in digitized, networked manufacturing—from single-part production to large-scale series production. With the MMT-650-500-DD, MABI Robotic is not only providing a technical product, but also a future-proof solution for companies that rely on maximum precision, efficiency, and process reliability in modern industry.

No items found.
No items found.

Technical specifications


Typ
MMT-650-500-DD
Load capacity mechanically clamped
500 kg | 1102 lb
Load capacity 5-axis simultaneous
350 kg | 771 lb

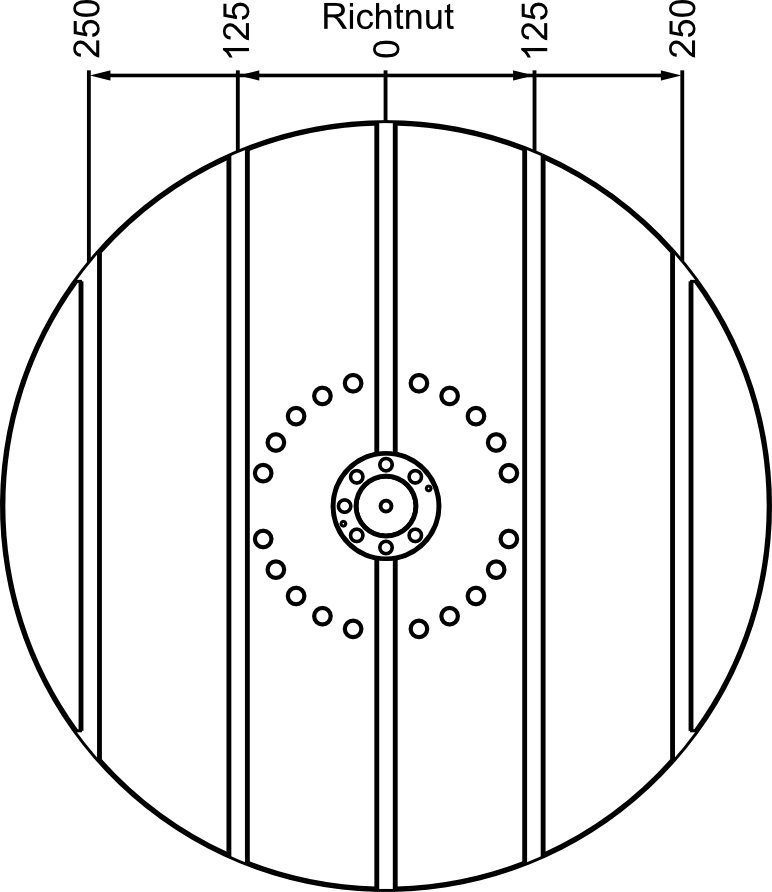

Diameter of the face plate
Ø 650 mm | Ø 25.6 in
Interference circle diameter for workpiece Ø 730 mm | Ø 28.7 in
Distance of the faceplate to the A-axis -50 mm
Includes parallel T-slots according to DIN 650
1x 14H7 / 4x 14H11
Accuracy of rotational axis
2''
Weight
1400 kg
Drive system
Direct drive with torque motor
This device is designed for
Milling
Controller
SIEMENS SINUMERIK ONE
Power supply
360-440 VAC, 50/60 HZ

Speed of faceplate, max.
100 U/min
Rotation range
Endless
Rotary axis system accuracy
4''
Rotary axis repeatability
1''
Peak torque
753 Nm
Continuous torque
402 Nm
Swivel range
±110
Swivel speed
60 U/min
Swivel axis system accuracy
2''
Swivel axis repeatability
1''
Peak torque
2'055 Nm
Continuous torque
1'325 Nm
